Install Portworx on AWS EKS using eksctl and the Operator

This article provides instructions for installing Portworx on Elastic Kubernetes Service (EKS) using the Weaveworks eksctl command-line utility.

note

NOTE: You can follow these procedures to deploy Portworx on AWS Outposts.

Prerequisites

Before you can install Portworx on EKS using pxctl, you must meet the following prerequisites:

• You must have eksctl downloaded and installed on your local computer

Install

Grant Portworx the needed AWS permissions

Create a ClusterConfig

The ClusterConfig dictates what resources eksctl requests from EKS for the purposes of running Portworx. Portworx requires a number of default resources and configurations in order to function, but other areas of your configuration will vary based on your needs.

1. Create a ClusterConfig configuration YAML file, specifying your own configuration options for the following:

   • metadata:

     • name: withe cluster name you desire
     • region: with the region you want your eks service to operate from
     • version: with a supported EKS version

   • managedNodeGroups:

     • storage-nodes.instance: with the instance type appropriate for your workloads
     • storage-nodes.minSize: and storage-nodes.maxSize: with the number of worker nodes. Both values must be the same, and a minimum of 3.
     • storage-nodes.ssh.publicKeyPath: if no path is specified, the default will be id_rsa
     • storage-nodes.iam.attachPolicyARNs: with the ARN of the IAM policy you created for Portworx in the Grant Portworx the needed AWS permissions step
     • storageless-nodes.instanceType: with the instance type approprirate for your storageless node workloads
     • storageless-nodes.minSize: with the minimum number of storageless nodes that can be active on your cluster at any given time
     • storageless-nodes.maxSize: with the maximum number of storageless allowed on your cluster
     • storageless-nodes.desiredCapacity: with the ideal number of storageless nodes preferred on your cluster
     • storageless-nodes.iam.attachPolicyARNs: with the ARN of the IAM policy you created for Portworx in the Grant Portworx the needed AWS permissions step

   • availabilityZones: with the availability zones applicable to your region

     apiVersion: eksctl.io/v1alpha5
     kind: ClusterConfig
     metadata:
       name: px-eksctl
       region: us-east-1
       version: "1.14"
     managedNodeGroups:
       - name: storage-nodes
         instanceType: m4.xlarge
         minSize: 3
         maxSize: 3
         volumeSize: 20
         #ami: auto
         amiFamily: AmazonLinux2
         labels: {role: worker, "portworx.io/node-type": "storage"}
         tags:
           nodegroup-role: worker
         ssh:
           allow: true
           publicKeyPath: ~/.ssh/aws-vm.pub
         iam:
           attachPolicyARNs:
             - arn:aws:iam::aws:policy/AmazonEKSWorkerNodePolicy
             - arn:aws:iam::aws:policy/AmazonEKS_CNI_Policy
             - arn:aws:iam::aws:policy/AmazonEC2ContainerRegistryReadOnly
             - arn:aws:iam::aws:policy/ElasticLoadBalancingFullAccess
             - <arn-of-your-portworx-aws-iam-policy>
           withAddonPolicies:
             imageBuilder: true
             autoScaler: true
             ebs: true
             fsx: true
             efs: true
             albIngress: true
             cloudWatch: true
       - name: storageless-nodes
         instanceType: m4.xlarge
         minSize: 3
         maxSize: 6
         desiredCapacity: 4
         volumeSize: 20
         amiFamily: AmazonLinux2
         labels: {role: worker}
         tags:
           nodegroup-role: worker-storageless
         ssh:
           allow: true
           publicKeyPath: ~/.ssh/aws-vm.pub
         iam:
           attachPolicyARNs:
             - arn:aws:iam::aws:policy/AmazonEKSWorkerNodePolicy
             - arn:aws:iam::aws:policy/AmazonEKS_CNI_Policy
             - arn:aws:iam::aws:policy/AmazonEC2ContainerRegistryReadOnly
             - arn:aws:iam::aws:policy/ElasticLoadBalancingFullAccess
             - <arn-of-your-portworx-aws-iam-policy>
           withAddonPolicies:
             imageBuilder: true
             autoScaler: true
             ebs: true
             fsx: true
             efs: true
             albIngress: true
             cloudWatch: true
     availabilityZones: [ 'us-east-1a', 'us-east-1b', 'us-east-1c' ]

2. Enter the following eksctl create cluster command, specifying the name of the clusterConfig file you created in the step above:

   eksctl create cluster -f <my-clusterConfig>.yml

Generate the spec

To install Portworx with Kubernetes, you must first generate Kubernetes manifests that you will deploy in your cluster:

1. Navigate to Portworx Central and log in or create an account

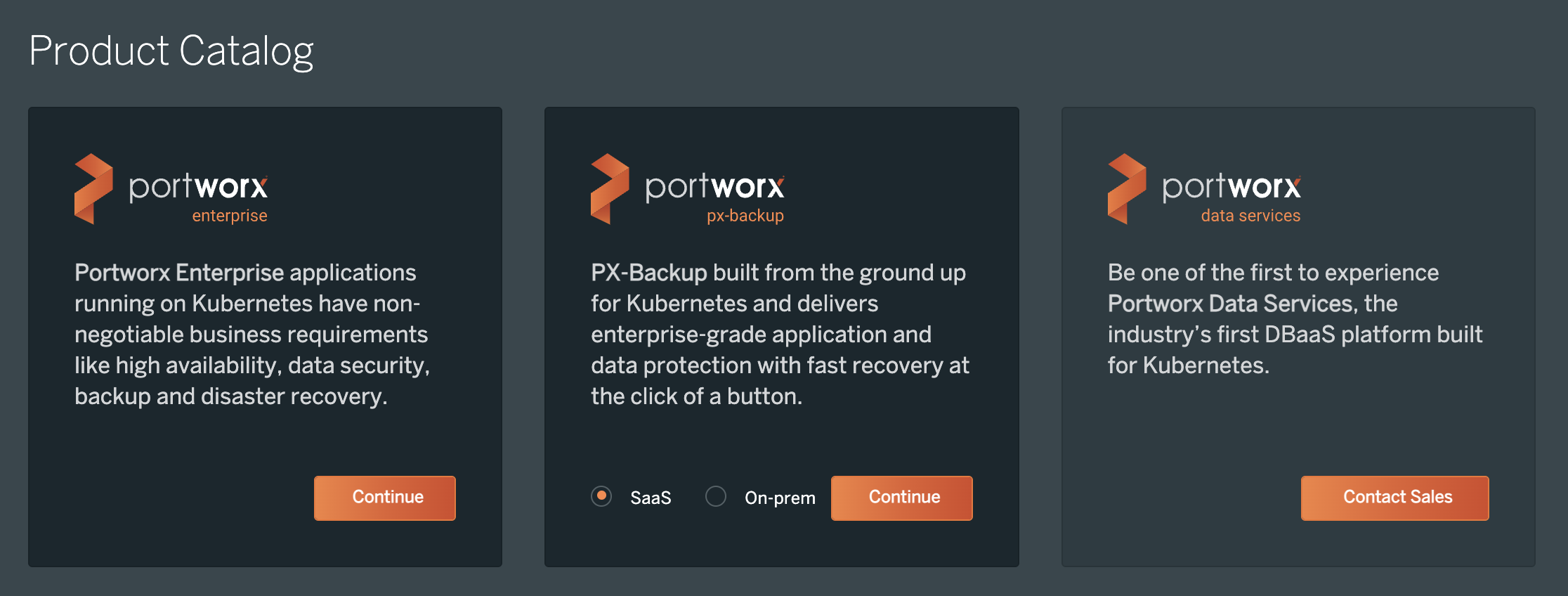

2. Click Continue with Portworx Enterprise option:

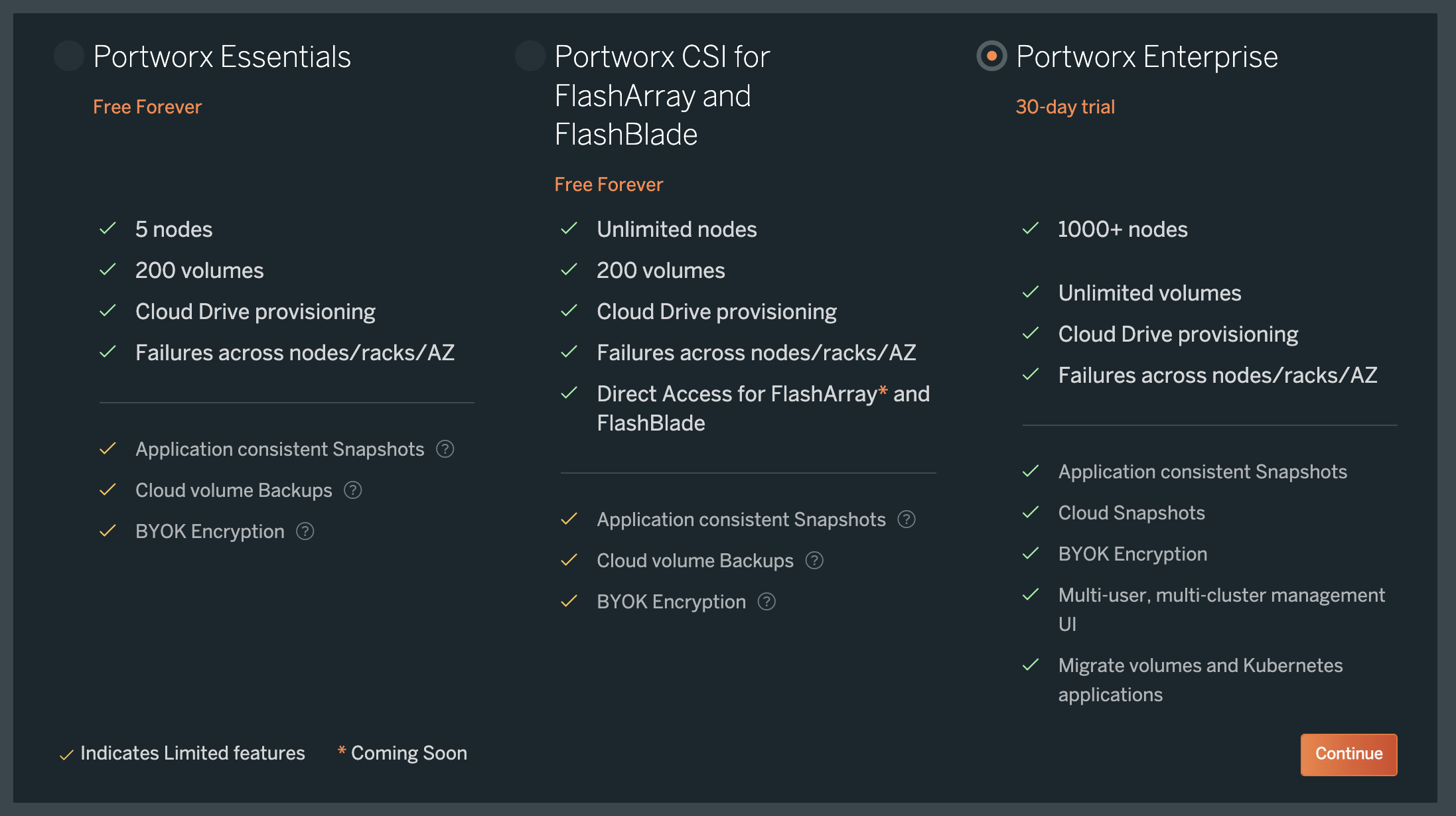

3. Choose an appropriate license for your requirement and click Continue:



4. Generate a spec with the following selections:

   • On the Storage tab, specify AWS and configure your storage devices based on your needs
   • On the Customize tab, select the Amazon Elastic Container Service for Kubernetes (EKS) option
   • Under the Environment Variables dropdown on the Customize tab, create an environment variable named ENABLE_ASG_STORAGE_PARTITIONING with a value of true

Further reading

• Refer to the eksctl github for more examples of config files which can be used as input to eksctl
• For more information on what eksctl is, as well as how it works, refer to the eksctl documentation
